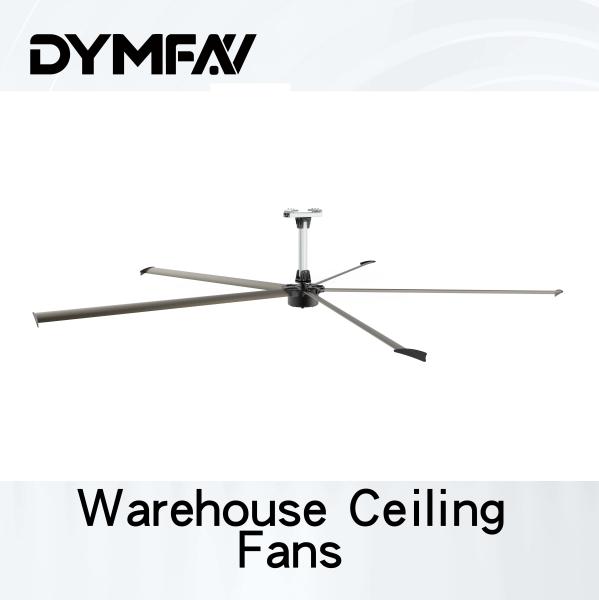

    3m 10ft HVLS Industrial Ceiling Fans Big Booty Fan

    Ask Lasest Price
    Brand Name : DYMFAN
    Model Number : D-700E
    Certification : CE/ISO9001
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 100 sets per month
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    3m 10ft HVLS Industrial Ceiling Fans Big Booty Fan

    Industrial Ceiling Fan Price 3000mm 3m 10ft Hvls Big Ceiling Fan Industrial Fan Ventilation


    Large ceiling fan by the fan continue to push forward, and produce a large number of air blowing to the around, the air flow to both sides of the flow, the information of large area of the airflow, through the control of the fan, get the average wind speed of 1-3m/s comfortable cool wind.


    • With high-performance non-inductive identification BD-DSP drive,
    • Long-distance application
    • High precision of speed control, convenient to control speed
    • Built-in protective module can cut off output automatically for accident;
    • Protection level: IP55;
    • Pass the UL, EMC, LVD, RoHs certification.

    How does it work


    The wind blowing from the D-700 series high efficiency big blade ceiling fan is like a natural breeze, and the wind speed is just suitable for human skin. Peopel can feel the temperature difference of 5-8 degrees, providing a suitable working environment for people in the hot summer, thereby improving the production efficiency.
    When turning on, it can provide huge airflow to cover a large area, helping to create airflow in the space where you are. Form air circulation, air from the inside to the outside, keeping the indoor air fresh. It can also take away the dusty and humid air, making people more comfortable.


    Technical parameters


    ModelD-500SD-500AD-500BD-700DD-700E
    Diameters3.61 meter4.3 meter5 meter6.6 meter7.1 meter
    Total weight16kg17kg18kg147kg49kg
    Maximum power700W700W700W150W1500W
    Maximum rev120RPM95RPM80RPM65RPM60RPM
    Wind covering space200-350200-350200-350500-650500-650
    Air volume10000 m³/min10000 m³/min10000 m³/min18000 m³/min18000 m³/min
    Mounting height4-10 meter4-10 meter4-10 meter6-25 meter6-25 meter
    MountingI-beam / Bar joist /Solid beam
    Moter typeBrushless Motor
    Voltage220V, 50Hz
    Blade meterialAluminium alloy
    Blade numbers5 blades
    ApplicationsFactories / Warehouses / Dining halls / Churches / Gyms / Stations / Farms

    Features


    Low energy consumption: The maximum power consumption of D-700E high efficiency big blade ceiling fan is just 1500w.
    Large wind power: The air volume of D-700 series can creat is 18000m³/min.
    Natural airflow:
    D-700E high efficiency big blade ceiling fa can generate a large amount of air to cover a large area, forming a natural wind-like airflow.
    Light fan body: The total weight of D-700E
    high efficiency big blade ceiling fan is 49kg.
    Built-in PMSM motor:
    D-700E high efficiency big blade ceiling fan has no gearbox and built-in PMSM motor.


    Applications


    Our high efficiency big blade ceiling fan can applicate in many different spaces:

    Industrial spaces: Factory/workshop/warehouse
    Public spaces: Station/airport/school/gym
    Commercial spaces: Exhibition hall/mall/hotel/cafe
    Other spaces: Church/health club/Farm


    Applications photos


    3m 10ft HVLS Industrial Ceiling Fans Big Booty Fan
