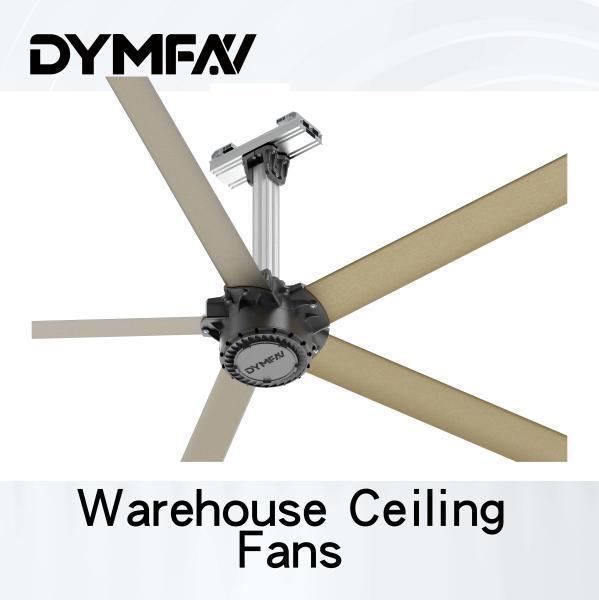

6.6m 1.5kw 5 Blades Commercial HVLS Fans For Workshops

Rugged chassis
The chassis is made of high-performance structural steel; the upper and lower double chassis are clamped by 12 high-strength bolts, so that all the fan blades are connected as a whole to prevent looseness and noise.

High-strength bolts
All 12.9/8.8 grade high-strength bolts are used to ensure quality; mechanical locking nuts are used to prevent loosening; with glue, permanent locking without hidden dangers.

1. The flanges on both sides of the connecting plate between the fan and the installation beam are formed into a [shape to prevent deformation and bending;
2. The connecting splint and the beam mounting plate are locked with a deep sawtooth structure to prevent falling off;
3. The connection of each part of the fan is L hook connection or tenon and tenon connection with full welding, double protection;
4. After the installation of the fan is completed, use 4 steel wire ropes to tighten and fix it on the building to prevent shaking;
5. A wire rope connection is added between the motor shaft and the building beam for multiple protection;
6.The control system has complete overload, overcurrent, and overheat protection.

Technical parameters

​ How does it work

The principle behind the extra large ceiling fan is to move a very large amount of air by using large-diameter fan blades rotating at a low speed to break up the stratified air layer. The low speed of the fan makes it more efficient to convert electrical energy into useful laminar flow, rather than generating wasteful turbulence and resistance at higher speeds-which ultimately only generates unwanted heat. These large blades move more air than their smaller ceiling fans, usually 5-20 times, and have the same cooling effect. No other cooling system can be as energy-efficient as a system using HVLS industrial fans. In fact, research shows that companies can reduce or even completely eliminate the use of expensive air conditioning systems through optimized extra large ceiling fan solutions. Some extra large ceiling fan vendors provide 3D thermodynamic models of customer rooms, which proves the effectiveness of extra large ceiling fan as a cost-effective air cooling system.

Features

※Energy saving: The maximum power of D-700E extra large ceiling fan is 1500 watts.
※Big wind: D-700E has a maximum wind volume of 18000m³/min.
※Natural airflow: D-700E extra large ceiling fan can form wind like natural airflow.
※Lightweight fan main body: The total weight of D-700E (main body) is 49kg.
※Built-in PMSM motor: D-700E adopts no PMSM motor and gear box.
※Stepless speed regulation: Our controller is perfectly matched with the fan, and the fan speed can be adjusted steplessly.

Details

Application spaces

Our high efficiency PMSM HVLS fans can applicate in many different spaces:

Industial spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms

​ Installations

We can provide a variety of installation methods according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.
