PMSM Motor 5m/6.1m/7.3m Wide Blade Big HVLS Ceiling Fan Commercial

1. Large size of 4.9m-7.3m/16ft-24ft
2. With our own brand XINGTAI Independently R&D, we produce gearless PMSM motor & Controller
3. High efficient & energy saving of max 1.5KW power
4. Area coverage up to 1400m2 per fan
5. Controller controls the motor temperature rise not more than 20degC.
6. Free of maintenance
7. Low speed, max 65rpm (24ft blades)

Permanent magnet direct drive fan advantages:
1) More energy-saving effect
2) Operating noise is significantly reduced
3) Service life and reliability are significantly improved.
4) reduction gearbox is eliminated, pollution due to lubricant leakage does not occur
5) Maintenance-free for the entire life
6) A standard factory building of 10,000 square meters only needs to install 5-10 large-scale 7.3-meter fans, which is more than
70% more energy-efficient than traditional distributed small fans.

Technical parameters

​ How does it work

Our high efficiency PMSM HVLS fans can deliver massive airflow to cool down a large area when running, it can help to cool down equipment and make people feel better. At the same time it forms air circulations and can help to refreshes the air, take away dust and lower down the humidity of the working area.

Features

※Energy saving: The maximum power of D-700E PMSM HVLS Fan is 1500 Watt.

※Great wind power: The maximum air volume of the D-700E is 18000m³/min.

※Natural air flow: D-700E can form wind just like natural air flow.

※Light fan body:The total weight of the D-700E(main body) is 49kg.

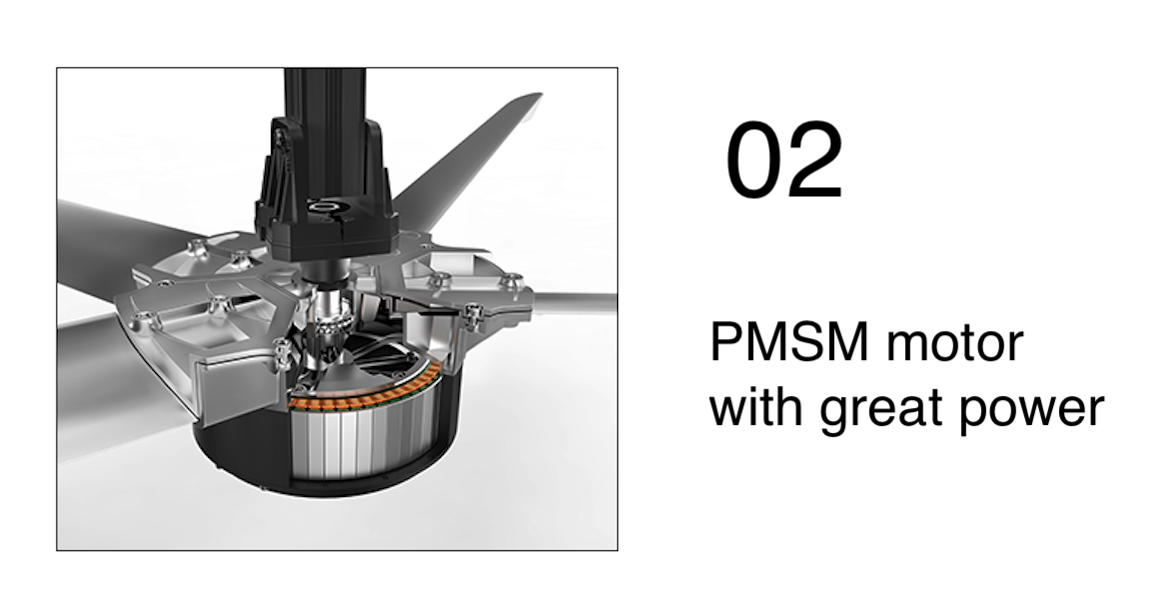

※PMSM motor inside:D-700E uses a PMSM motor and gearbox free.

※Stepless speed regulation: Our controller perfectly matches the fan and can stepless regulate Rotation speed of the fan.

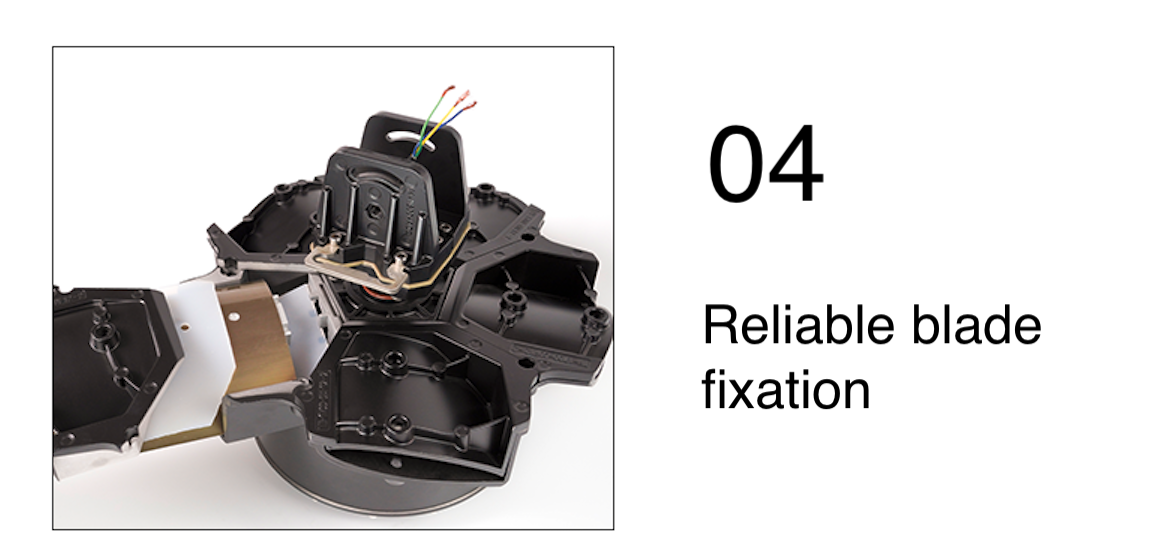

Details

Application spaces

Our high efficiency PMSM HVLS fans can applicate in many different spaces:

spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms

​ Installations

We can provide a variety of installation methods according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.

Applications photos

Wujiang DYM Industrial Ceiling Fan Manufacturing Co., Ltd is a leading manufacturer of industrial ceiling fans based in Suzhou, China. With over 9 years of experience in the industry, we specialize in designing, producing, and installing industrial ceiling fans with a maximum diameter of up to 7 meters. Our fans are designed to provide effective cooling and improve air quality in large spaces, such as industrial plants, commercial buildings, and agricultural facilities.
Our industrial ceiling fans are meticulously crafted using computer-aided design and modular production processes, and we utilize a significant amount of aluminum alloy structural components in their construction. This design approach not only reduces the overall weight of the fans, making them easier to install, but also ensures that they provide optimal air flow coverage with minimal power consumption, while being safe and reliable to install.
At DYM, we take pride in our technological expertise and innovative solutions. Our team of experienced engineers has developed proprietary technologies and production processes to ensure the highest quality products. From start to finish, we are committed to providing exceptional service to our customers. In addition to our top-of-the-line products, we offer comprehensive after-sales service, including installation, maintenance, and repair services, to ensure that our fans continue to operate at peak efficiency in China.
Our reputation for quality and reliability has made us a trusted name in the industry. Over the years, we have completed many successful projects and have built strong relationships with our partners. We believe that our commitment to innovation and excellence has been instrumental in our continued success.
We are always excited to work with new customers and provide the best industrial ceiling fans for their needs. Please contact us to learn more about our products and services, or to schedule a consultation.
