10ft 8 Piece Aluminum Fan Blade HVLS Solar Plant Workshop Commercial Large Ceiling Fan

How does this work?

When the air conditioner is just turned on in the mall, it will take a long time to cool the whole mall without turning on the HVLS fans, which will cost a lot of electric bill in the meantime. But if we turned on the HVLS fan, its big airflow can quickly stir the cold air and disperse the cold air to the corner of the mall. In this way, when the mall is full of customers, the flowing wind can keep the air fresh, so that the guests can continue to breathe fresh air.

• This ceiling fan include the motor, reducer, hanger frame and fan component.
• The hanger frame include the top fixed support, base plate and two joint parts.
• The motor and reducer are installed inside of the hanger frame, the output shaft exceed through base plate to connect the fan component.
• It's widely used in industrial plants, shopping malls and other larger space as the ventilating facility.

Technical parameters

​ How does it work

The principle behind the big industrial ceiling fan is to move a very large amount of air by using large-diameter fan blades rotating at a low speed to break up the stratified air layer. The low speed of the fan makes it more efficient to convert electrical energy into useful laminar flow, rather than generating wasteful turbulence and resistance at higher speeds-which ultimately only generates unwanted heat. These large blades move more air than their smaller ceiling fans, usually 5-20 times, and have the same cooling effect. No other cooling system can be as energy-efficient as a system using HVLS industrial fans. In fact, research shows that companies can reduce or even completely eliminate the use of expensive air conditioning systems through optimized big industrial ceiling fan solutions.

Features

※Energy saving: The maximum power of D-700E big industrial ceiling fan is 1500 Watt.

※Great wind power: The maximum air volume of the D-700E is 18000m³/min.

※Natural air flow: D-700E can form wind just like natural air flow.

※Light fan body:The total weight of the D-700E(main body) is 49kg.

※PMSM motor inside:D-700E uses a PMSM motor and gearbox free.

※Stepless speed regulation: Our controller perfectly matches the fan and can stepless regulate Rotation speed of the fan.

Details

Application spaces

Our high efficiency big industrial ceiling fan can applicate in many different spaces:

spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms

​ Installations

We can provide a variety of installation methods according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency big industrial ceiling fan can be easily and safely mounted on.

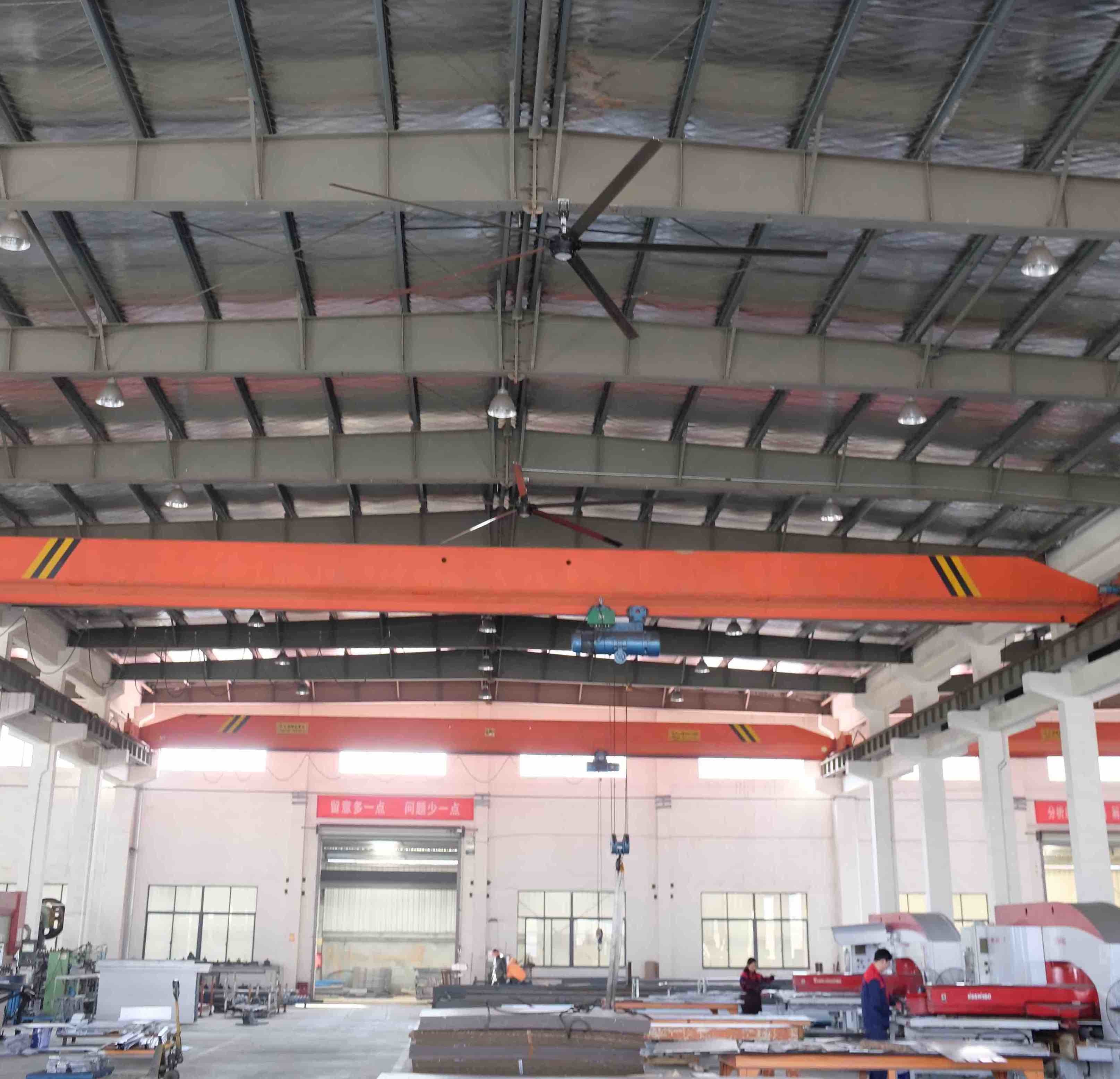

Applications photos

Wujiang DYM Industrial Ceiling Fan Manufacturing Co., Ltd is a leading manufacturer of industrial ceiling fans based in Suzhou, China. With over 9 years of experience in the industry, we specialize in designing, producing, and installing industrial ceiling fans with a maximum diameter of up to 7 meters. Our fans are designed to provide effective cooling and improve air quality in large spaces, such as industrial plants, commercial buildings, and agricultural facilities.
Our industrial ceiling fans are meticulously crafted using computer-aided design and modular production processes, and we utilize a significant amount of aluminum alloy structural components in their construction. This design approach not only reduces the overall weight of the fans, making them easier to install, but also ensures that they provide optimal air flow coverage with minimal power consumption, while being safe and reliable to install.
At DYM, we take pride in our technological expertise and innovative solutions. Our team of experienced engineers has developed proprietary technologies and production processes to ensure the highest quality products. From start to finish, we are committed to providing exceptional service to our customers. In addition to our top-of-the-line products, we offer comprehensive after-sales service, including installation, maintenance, and repair services, to ensure that our fans continue to operate at peak efficiency in China.
Our reputation for quality and reliability has made us a trusted name in the industry. Over the years, we have completed many successful projects and have built strong relationships with our partners. We believe that our commitment to innovation and excellence has been instrumental in our continued success.
We are always excited to work with new customers and provide the best industrial ceiling fans for their needs. Please contact us to learn more about our products and services, or to schedule a consultation.
